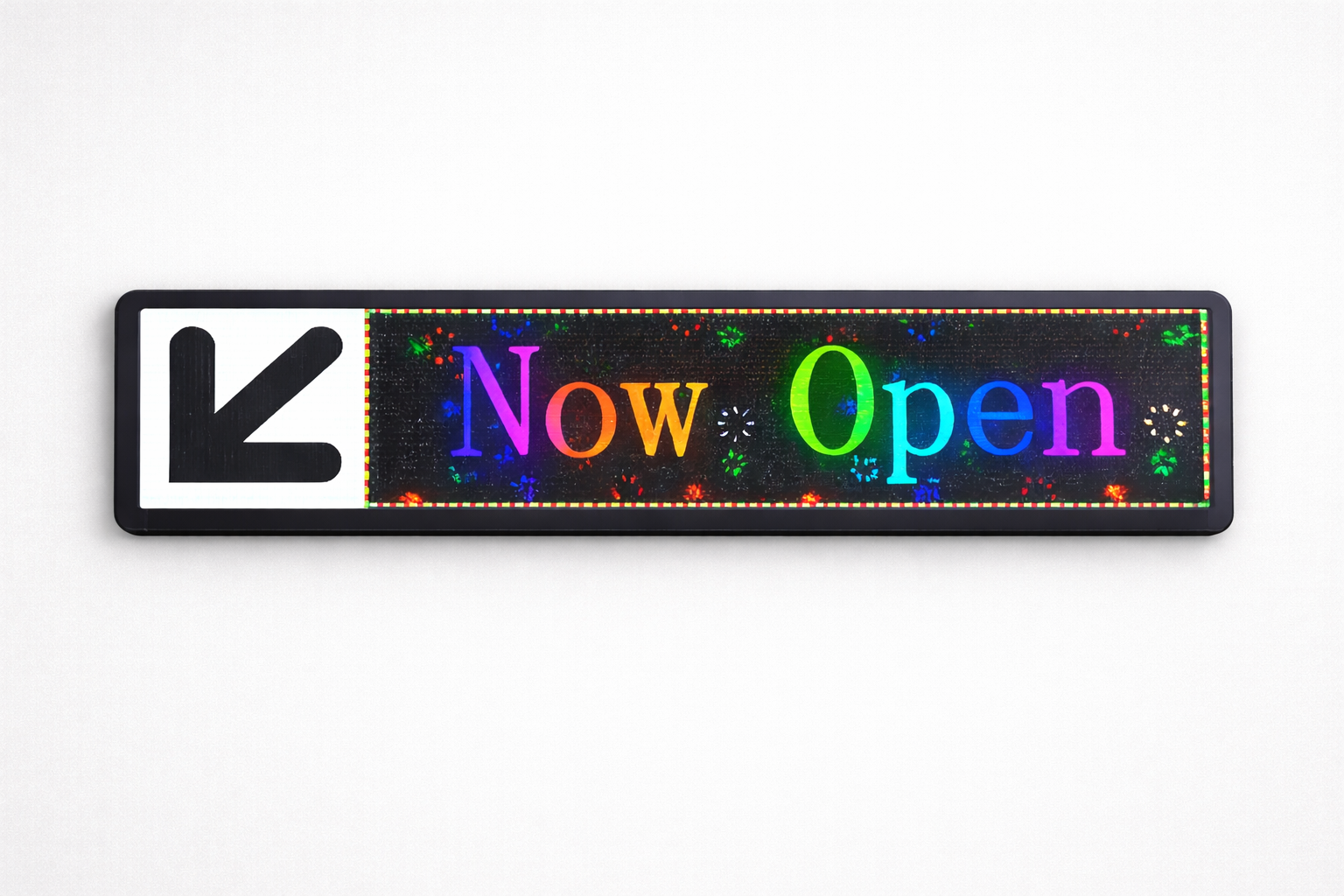

Dual-sided outdoor LED signage with selectable pixel pitch
This outdoor dual-sided LED display is available in P2.5 and P4, with P2 available on special order. It is intended for full outdoor use where sunlight, rain and harsh environments must be considered.
Best suited for
- Retail shopfronts and building frontages
- Outdoor and semi-outdoor advertising points
- High-foot-traffic locations needing two-way visibility
- Promotional content, trading hours, menus and brand messages
Outdoor performance notes
- High-brightness LED system for clearer visibility under direct sunlight.
- Automatic brightness adjustment can optimise viewing for day and night operation.
- Efficient heat dissipation should be planned for stable operation across changing temperatures.
- Corrosion-resistant aluminium structure helps support long-term outdoor durability.
- Dual-sided playback can be mirrored or independent, depending on the control configuration.
Project considerations
- Site exposure, shade, wind and weather conditions should be checked before installation
- Mounting structure and electrical access may affect the final solution
- Brightness and content schedule should match the viewing environment
Software control options
This LED display supports local PC setup, browser-based cloud publishing and mobile app control, depending on the project configuration and network environment.
Technical specifications
Screen dimensions and structural layouts can be tailored to suit the installation site. P2 is available on special order.
| Specification | 1 x 5 | 1 x 6 | 2 x 4 | 2 x 5 | 2 x 6 | 3 x 5 | 3 x 6 | 3 x 7 |
|---|---|---|---|---|---|---|---|---|
| Size (mm) | 220 x 1660 x 110 | 220 x 1980 x 110 | 380 x 1340 x 110 | 380 x 1660 x 110 | 380 x 1980 x 110 | 540 x 1660 x 110 | 540 x 1980 x 110 | 540 x 2300 x 110 |
| Display size (mm) | 160 x 1600 | 160 x 2240 | 320 x 1280 | 320 x 1600 | 320 x 1920 | 480 x 1600 | 480 x 1920 | 480 x 2240 |
| P2 single-sided pixel | 80 x 800 | 80 x 1120 | 160 x 640 | 160 x 800 | 160 x 960 | 240 x 800 | 240 x 960 | 240 x 1120 |
| P2.5 single-sided pixel | 64 x 640 | 64 x 896 | 128 x 512 | 128 x 640 | 128 x 768 | 192 x 640 | 192 x 768 | 192 x 896 |
| P4 single-sided pixel | 40 x 400 | 40 x 560 | 80 x 320 | 80 x 400 | 80 x 480 | 120 x 400 | 120 x 480 | 120 x 560 |
Before ordering
Please send site photos, approximate dimensions and installation height to Annview before ordering. We can confirm whether this product suits your site or whether a custom configuration is required.
