Interactive Display Panels
Commercial 4K interactive display panels for meeting rooms, classrooms and showrooms, with infrared touch, Android 14, screen mirroring, annotation and OPS options.
Price range: $2,508 through $85,800 incl. GST
DESCRIPTION

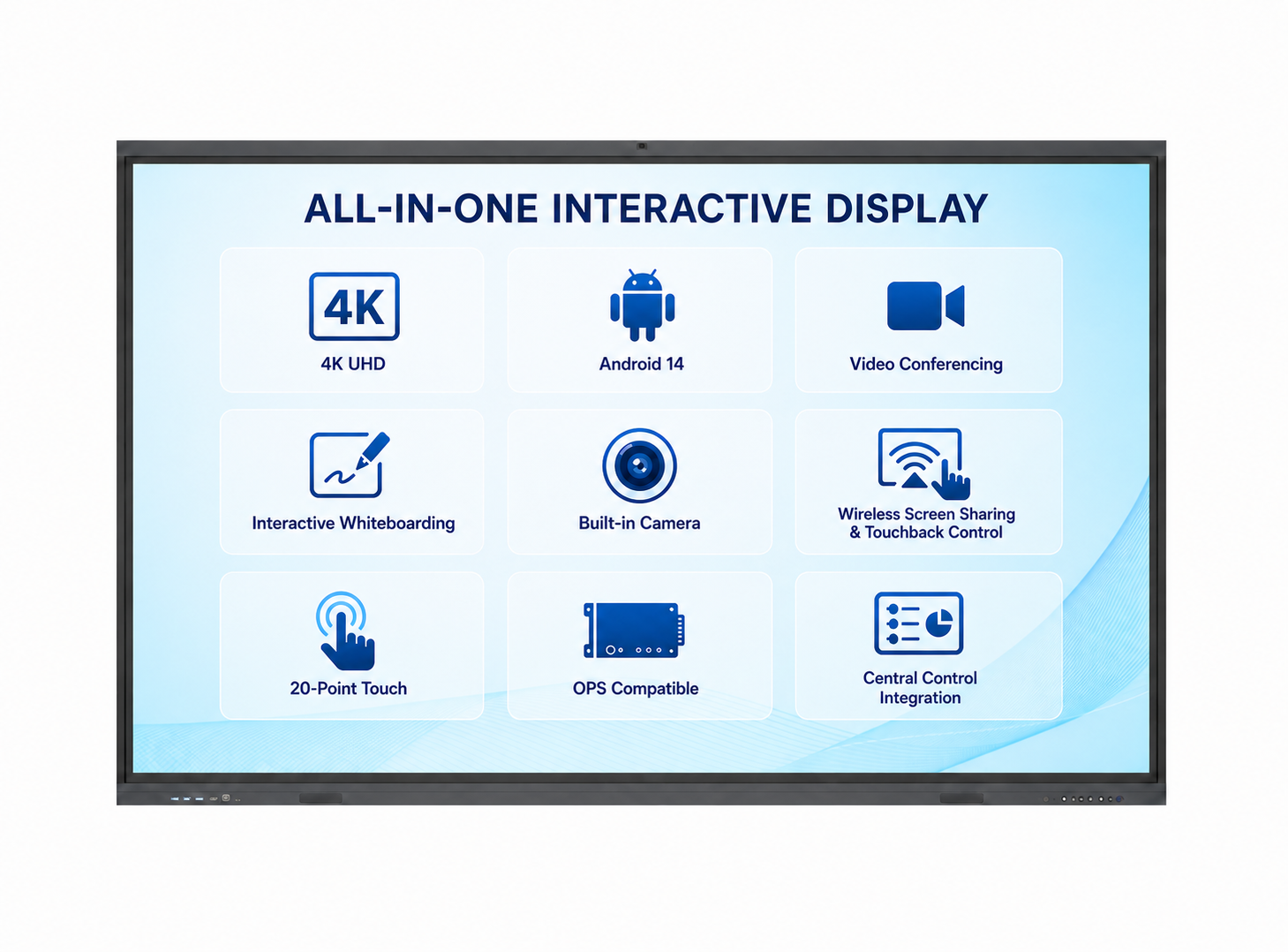

Interactive display panels for business and education
Annview interactive display panels are suited to meeting rooms, classrooms, training areas and customer-facing presentation spaces. They are designed for daily commercial use where touch interaction, screen sharing and clear presentation are important.
Best suited for
- Corporate meeting rooms and training rooms
- Schools, education centres and tutoring spaces
- Showrooms and sales presentation areas
- Collaborative workspaces requiring touch interaction
Interaction and collaboration features
- 4K UHD display with zero-bonding style screen construction for sharp presentation clarity
- Built-in Play Store support for selected app installation
- Anti-glare and eye-care screen design to reduce visual fatigue during long sessions

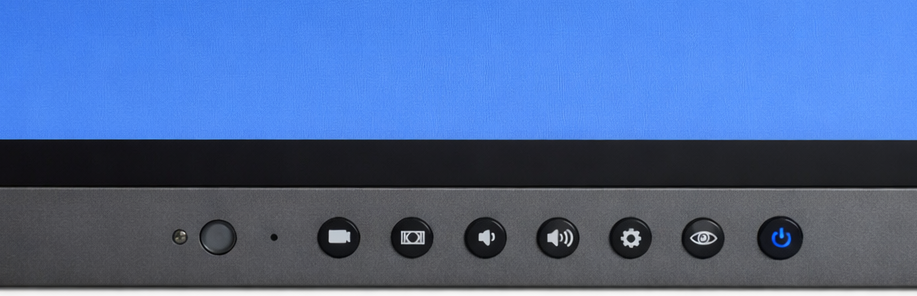

- Quick access controls for faster classroom or meeting room operation
- Annotation tools for marking up content directly on screen
- Screen mirroring with two-way touch operation when supported by the casting setup
Project considerations
- Panel size should match the room size and viewing distance
- Wall mounting, mobile stands and OPS computer options can be discussed
- Delivery, installation and warranty options are available depending on location
Technical specifications
| Size and model | 65 meetings-A | 86 meetings-A | 98 meetings-B | 110 meetings-A |
|---|---|---|---|---|
| Resolution | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 |
| Display size | 1428 x 803 mm | 1895 x 1065 mm | 2158 x 1214 mm | 2436 x 1370 mm |
| Touch technology | 10-point infrared | 10-point infrared | 10-point infrared | 10-point infrared |
| Operating system | Android 14 | Android 14 | Android 14 | Android 14 |
| Storage | 8 GB + 128 GB | 8 GB + 128 GB | 8 GB + 128 GB | 8 GB + 128 GB |

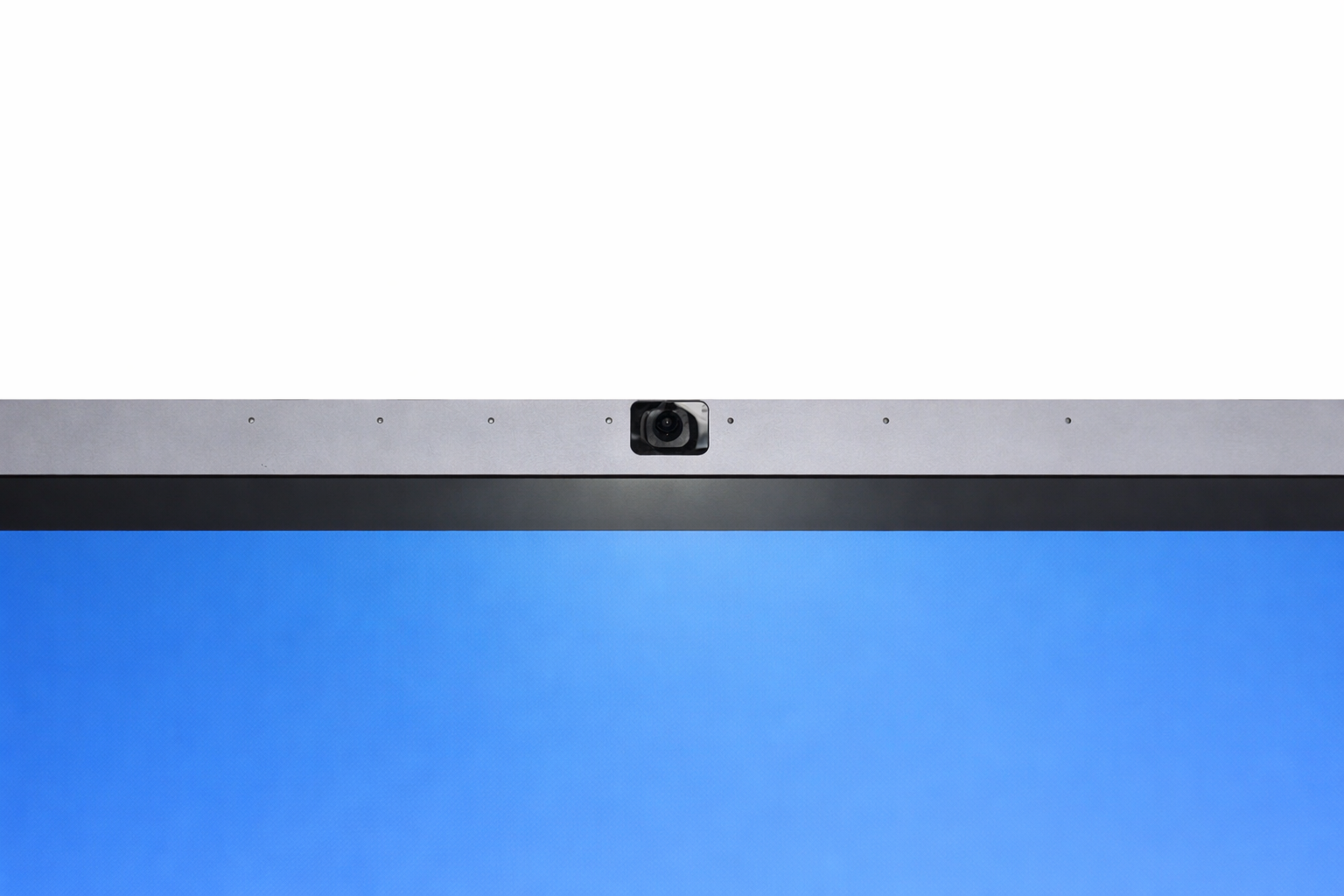

| Camera | 48 MP class | 48 MP class | 48 MP class | 48 MP class |
| Microphone | 10 m, 8-channel | 10 m, 8-channel | 10 m, 8-channel | 10 m, 8-channel |

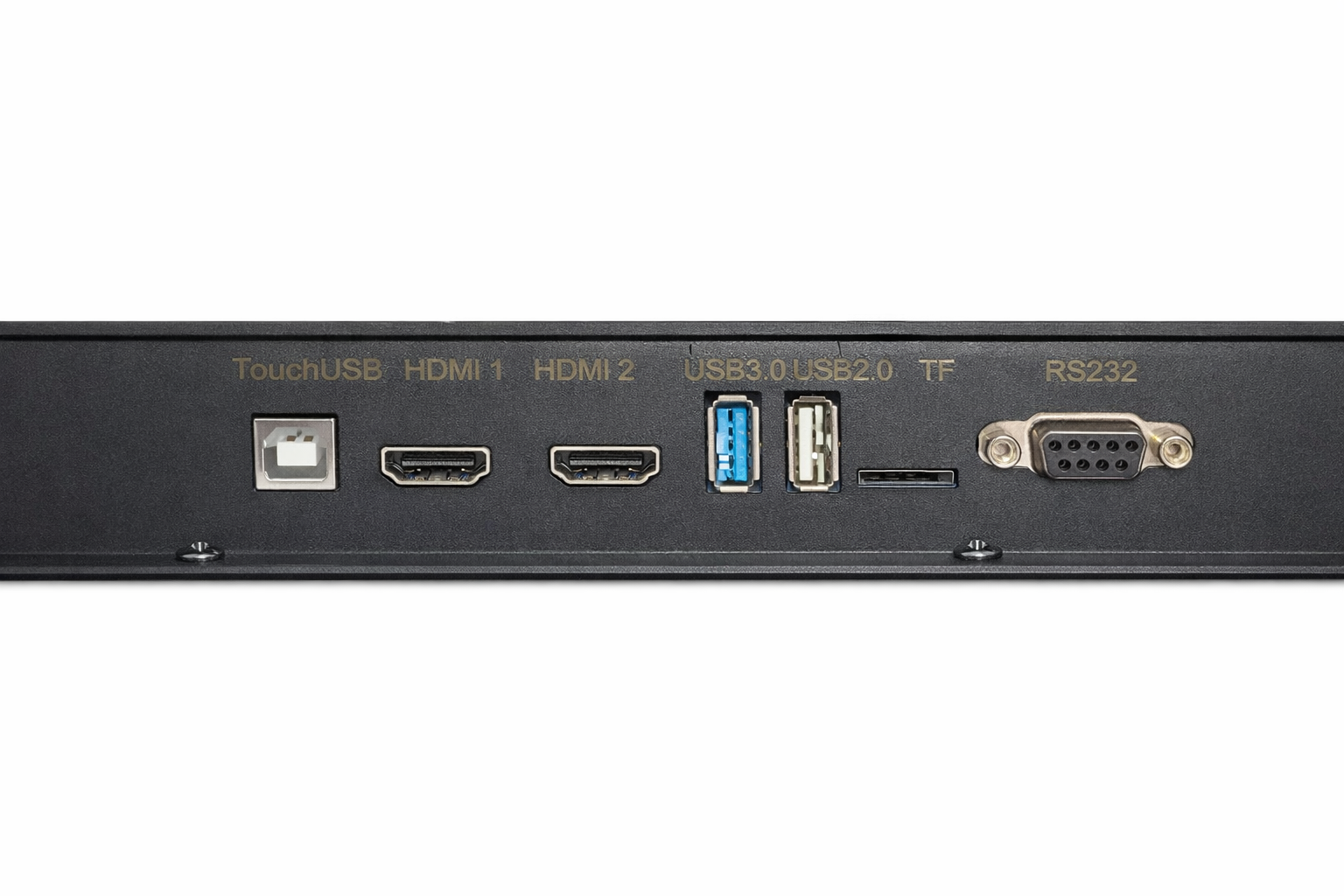

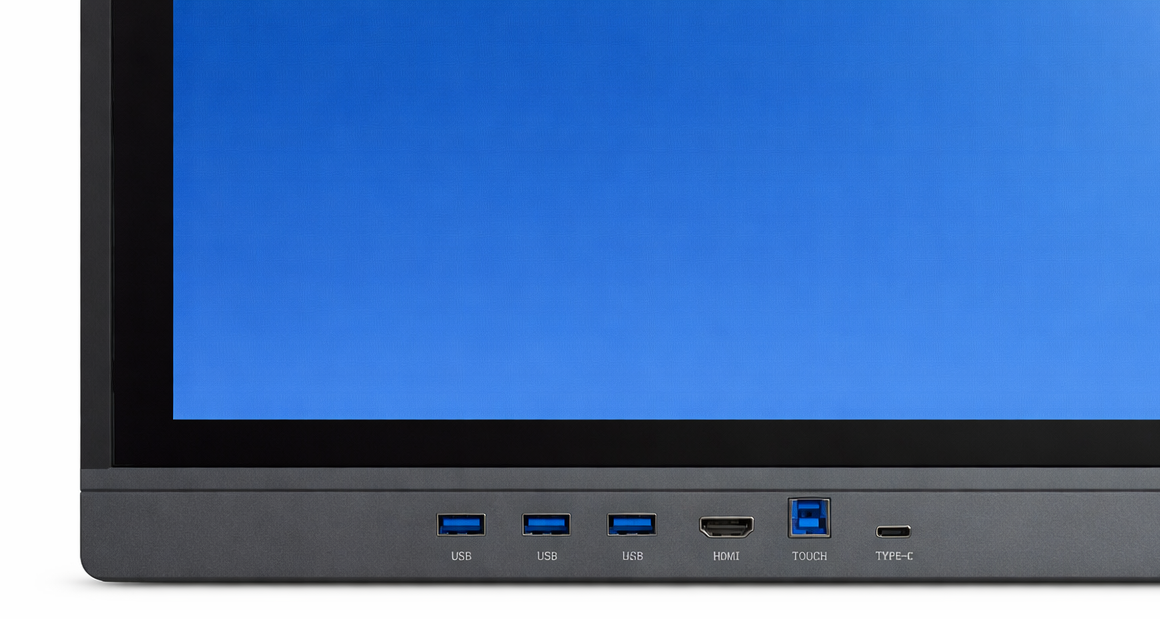

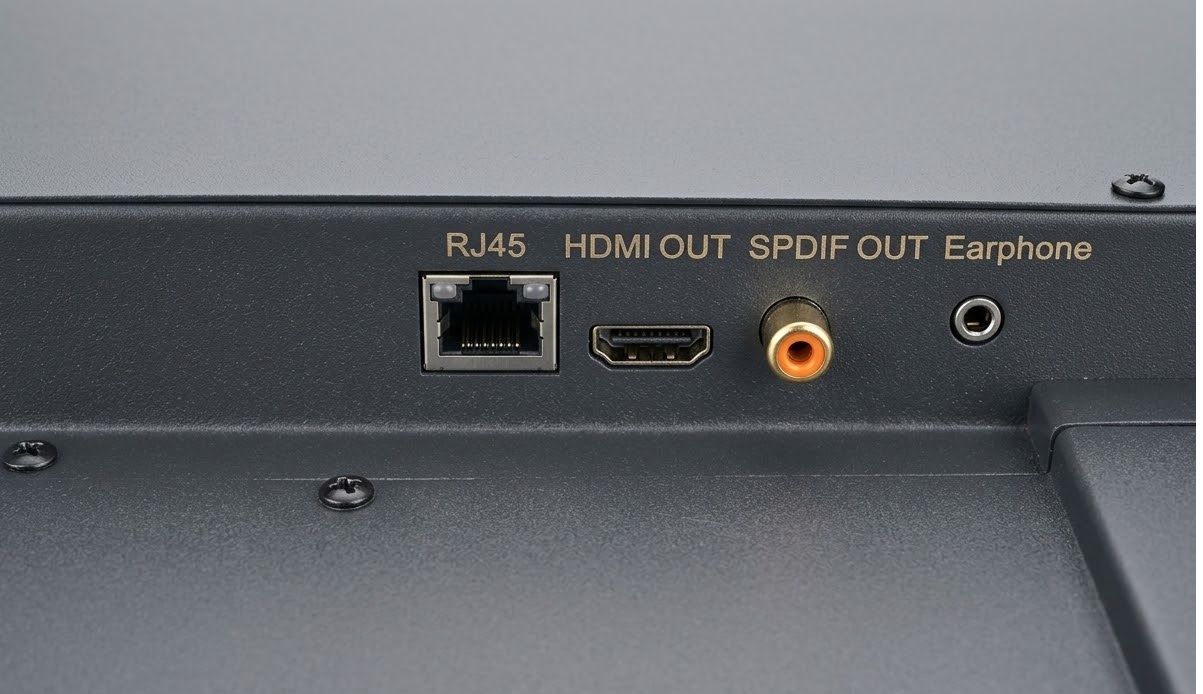

| Interface | 1 x Type-C full-function, Type-B touch, 4 x USB ports, 3 x HDMI ports, LAN and dual-band Wi-Fi 2.4G/5G | |||
| Machine size | 1484 x 887 x 116 mm | 1961 x 1177 x 116 mm | 2245 x 1323 x 90 mm | 2503 x 1470 x 109 mm |
| Net weight | 36 kg | 58 kg | 100 kg | 120 kg |
| Included | Remote control, wall mount, screen mirroring device, air mouse and pointer | |||
| Optional | OPS console, 4K screen mirroring, mobile stand, motorised stand, external camera, external speaker, capacitive touch and push-pull green panel | |||

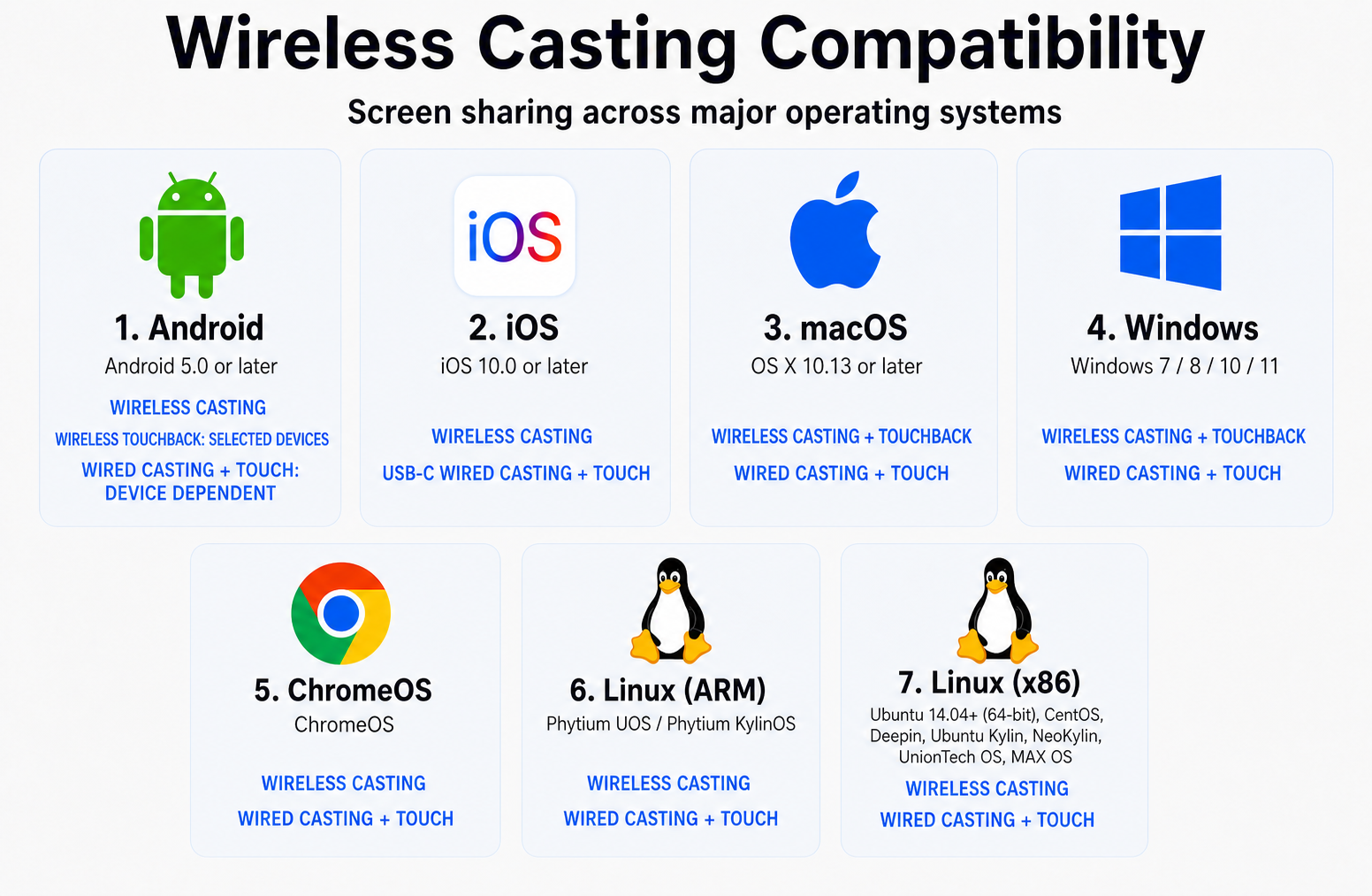

Casting compatibility
Wireless casting and touchback control can support common meeting room workflows. Compatibility should be checked for macOS, Windows and other operating systems according to the selected casting device and software setup.
Product diagrams and reference images
Before ordering
Contact Annview with your room size, preferred panel size and installation requirements. We can advise the most suitable display setup for your use case.
