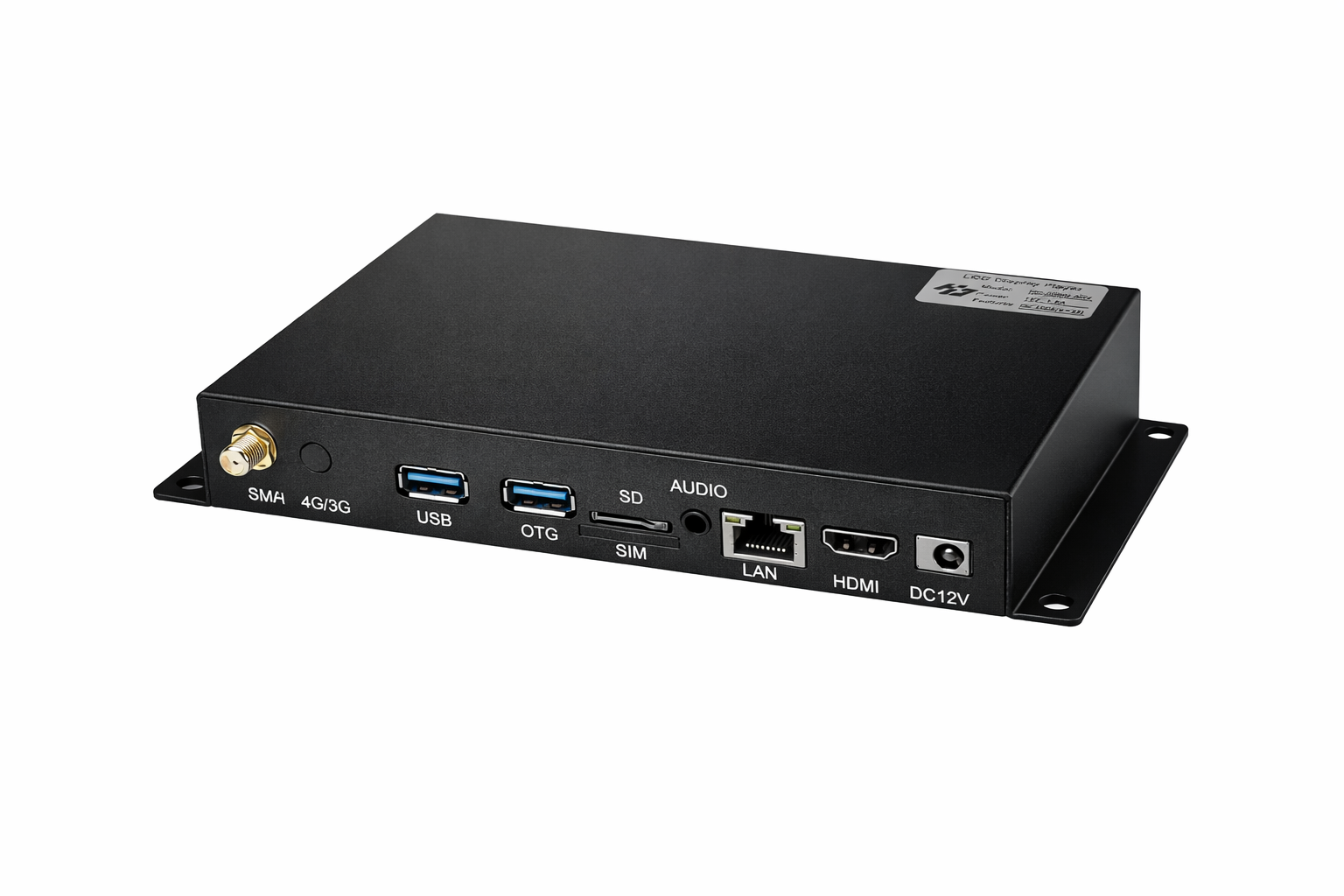

Playback hardware for commercial digital signage
The Digital Signage Playback Box is used to run and schedule content on compatible commercial displays. It is suitable for signage workflows where businesses need reliable playback, remote management and flexible output control without a complex custom system.
Best suited for
- Retail promotions and menu boards
- Reception and showroom information screens

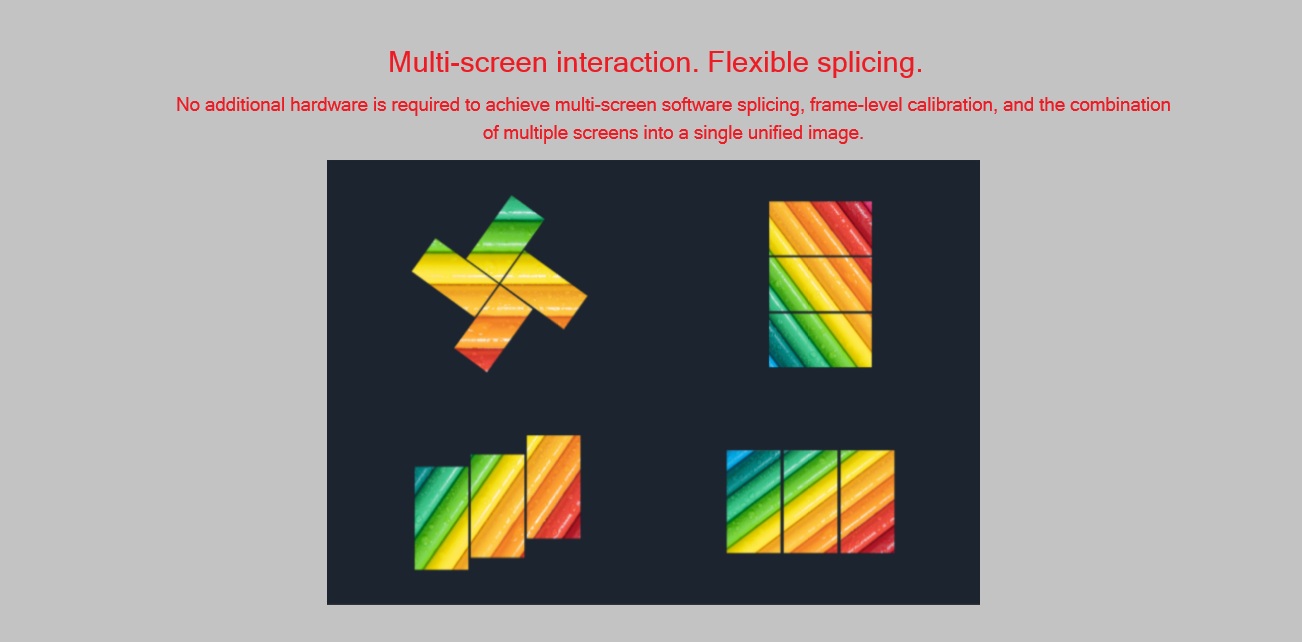

- Single-screen or small multi-screen signage setups
- Projects needing media playback, scheduling and remote updates
Key points
- 4K at 60 Hz HDMI output for ultra HD digital signage playback
- Mobile, cloud or PC control for remote content management
- 4 GB RAM and 32 GB storage for stable signage operation
- 0 / 90 / 180 / 270 degree rotation for flexible screen orientation
- Can suit selected LCD signage and LED display systems
Technical specifications
| Platform | RK3566/RK3568 Android smart media box |
|---|---|
| Operating system | Android 11.0 |
| Processor | Rockchip RK3566/RK3568 quad-core ARM Cortex-A55, up to 2.0 GHz |
| Graphics | Mali-G52 GPU |
| Memory | 4 GB RAM + 32 GB storage, expandable |
| Video decoding | 4K at 60 fps H.265 / H.264 / VP9 |
| Video formats | H.265, H.264, VP8, WMV, AVS, H.263, MPEG4 and more |
| Audio formats | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP |
| Image formats | JPG, BMP, PNG |
| Screen rotation | 0 / 90 / 180 / 270 degree manual rotation |
| Connectivity | Wi-Fi, Ethernet, USB, TF card, optional 4G |
| System features | OTA remote upgrade, USB local upgrade, Wi-Fi hotspot, software watchdog, remote monitoring |
Control and operation
- Supports server mode or standalone mode, depending on the signage workflow.
- OTA and USB local upgrade options help keep the player serviceable after installation.
- Software watchdog and crash recovery features help with continuous unattended signage use.
- Remote real-time monitoring can be used to check playback status when supported by the control software.

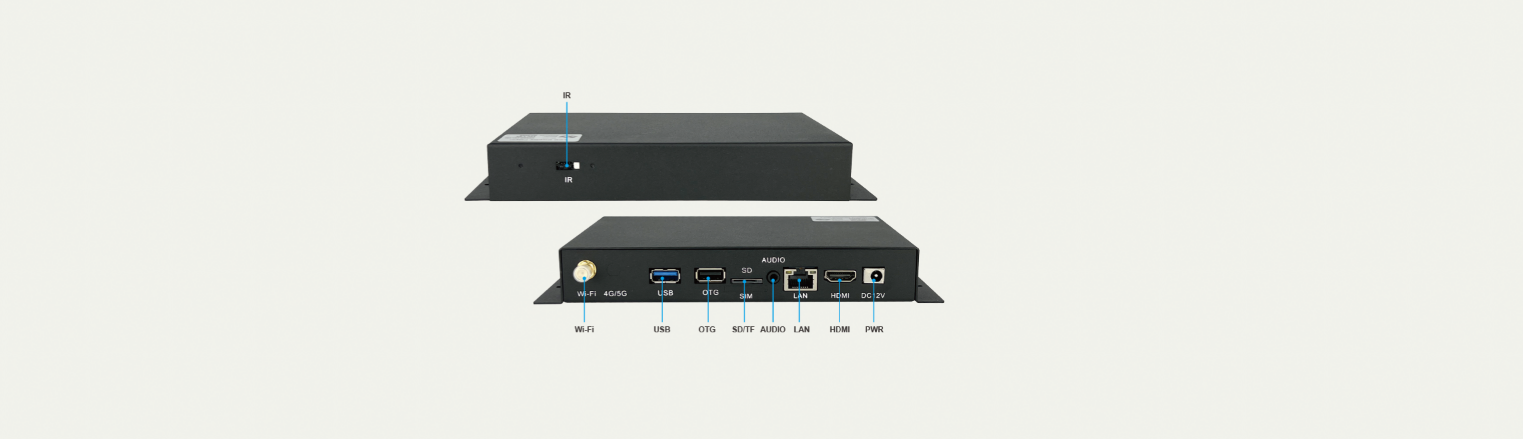

Product diagrams and reference images
Before ordering
Please confirm your display model, content format, network requirements and whether remote management is required. Annview can check compatibility before supply.
