ANN VIEW 8K Digital Signage Playback Box with six HDMI outputs

8K Digital Signage Playback Box

Name: 8K Digital Signage Playback Box
Brand: ANN VIEW PTY LTD
Price: 1200 AUD
Availability: InStock

RK3588 Android 12 network playback box for 8K-capable point-to-point digital signage, stock-market tickers and other multi-screen display scenarios, with HDMI IN, six HDMI OUT ports, dual Gigabit Ethernet and 8GB RAM + 64GB storage.

Original price was: $1,580.Current price is: $1,200. incl. GST

DESCRIPTION

8K-capable playback hardware for commercial digital signage

The 8K Digital Signage Playback Box is designed for point-to-point digital signage, stock-market ticker displays and other multi-screen commercial display workflows that need stable playback, external input and network control in one compact hardware platform.

Best suited for

Point-to-point multi-screen displays
Stock-market tickers and panoramic information boards
Multi-screen menu boards, retail promotions and showroom displays
Commercial signage workflows needing external input and network content control

Technical specifications

Platform	Rockchip RK3588 Android network playback box
Operating system	Android 12
Processor	RK3588 octa-core 64-bit processor: 4 x Cortex-A76 + 4 x Cortex-A55, up to 2.2 GHz
Graphics	ARM Mali-G610 MC4 GPU
Memory / Storage	8GB RAM + 64GB storage
NPU	6TOPS AI computing

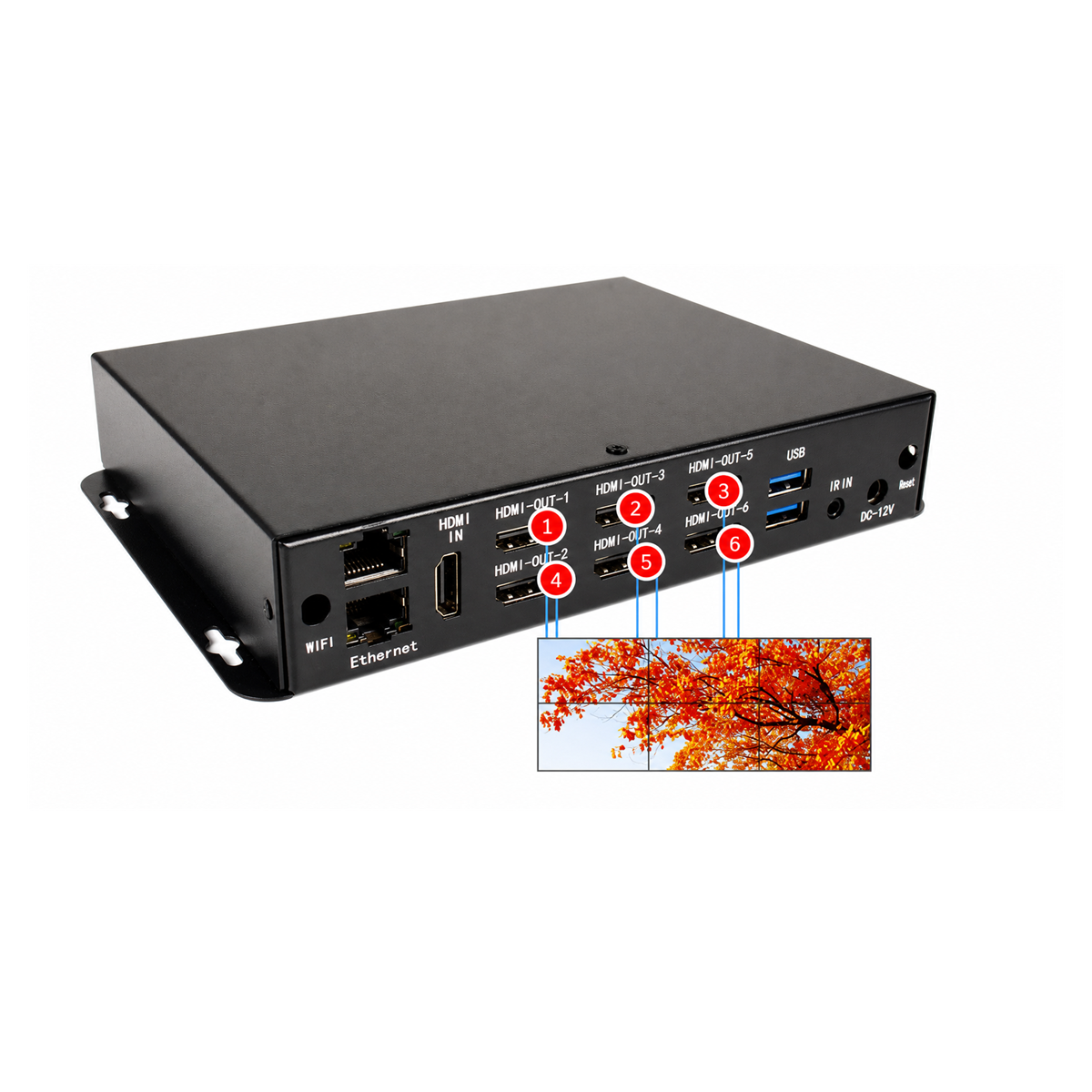

Display output	HDMI 2.0, 1 x HDMI IN, 6 x HDMI OUT
Network	2 x Gigabit Ethernet ports; 2.4G / 5G Wi-Fi

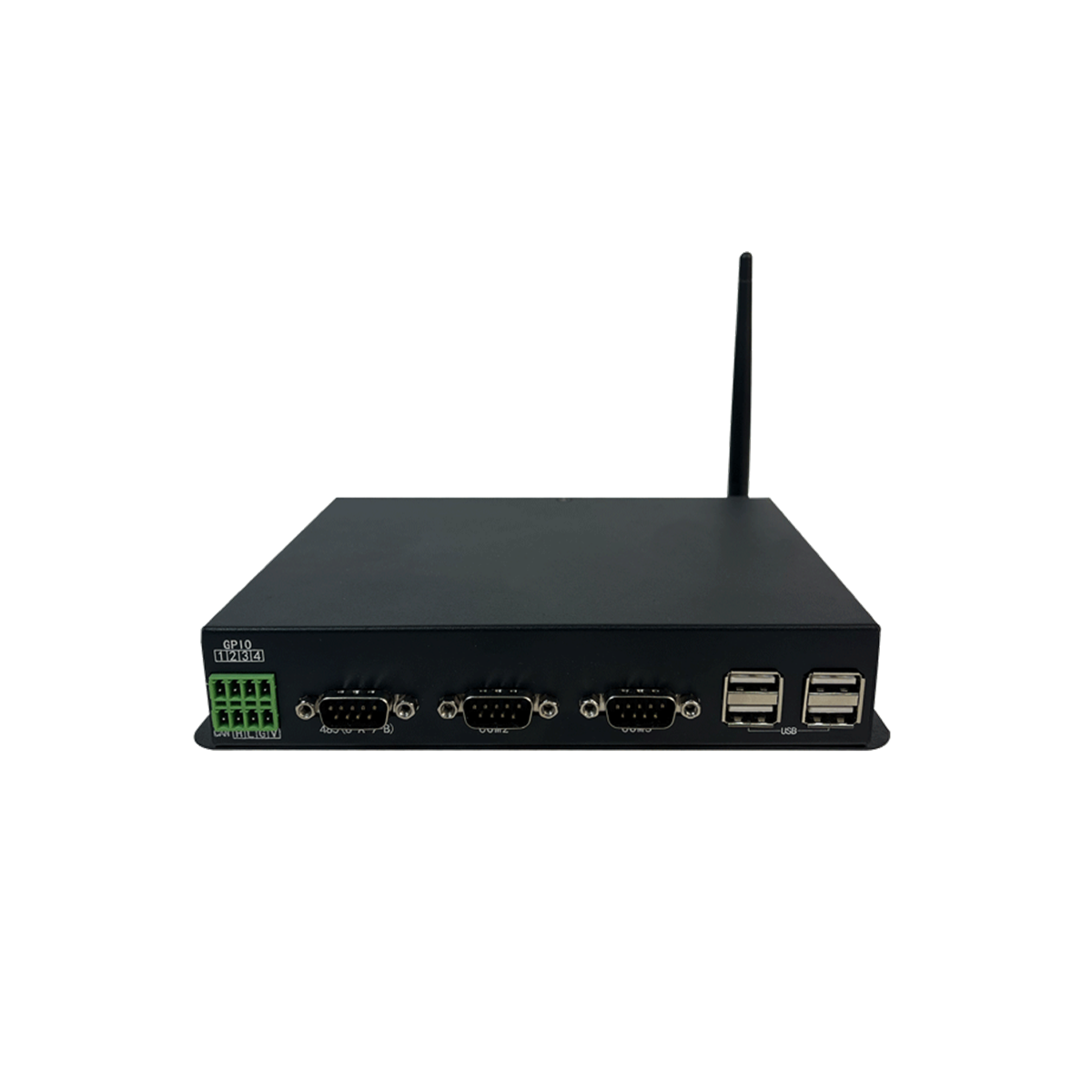

USB / Serial	4 x USB 2.0, 2 x USB 3.0, 1 x RS485, 2 x RS232
Media formats	MP4 video, MP3 audio, JPG / PNG image files
Audio	3.5 mm audio output
Body size	Approx. 185.2 x 131.8 x 34.6 mm
Weight	Approx. 0.7 kg net; approx. 1 kg packed

Multi-screen display modes

Reference layouts can include linked point-to-point output or independent split playback. Final support depends on the source content, displays and software configuration.

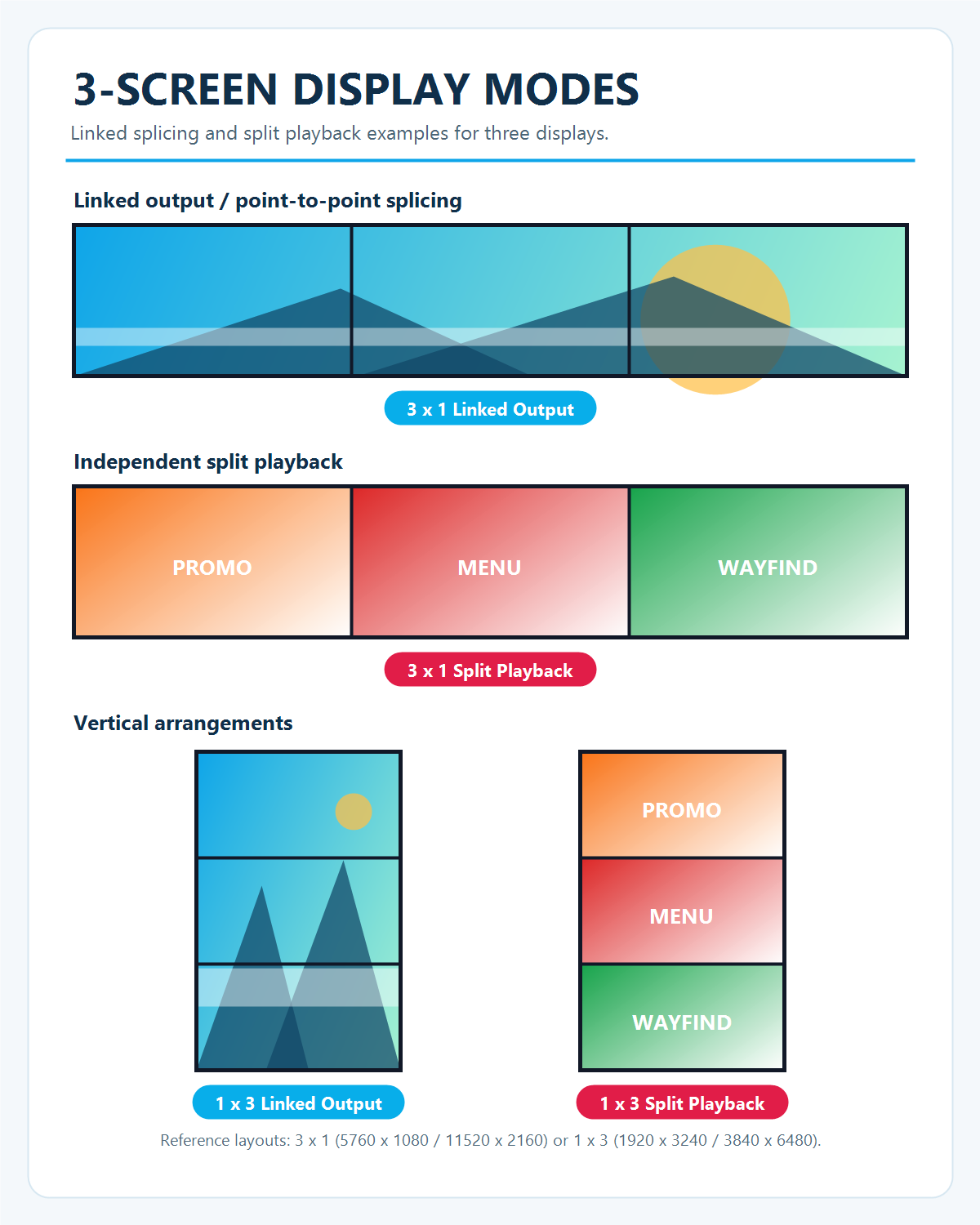

ANN VIEW 8K playback box 3-screen display modes — 3-screen modes: 3 x 1 or 1 x 3 linked output and split playback.

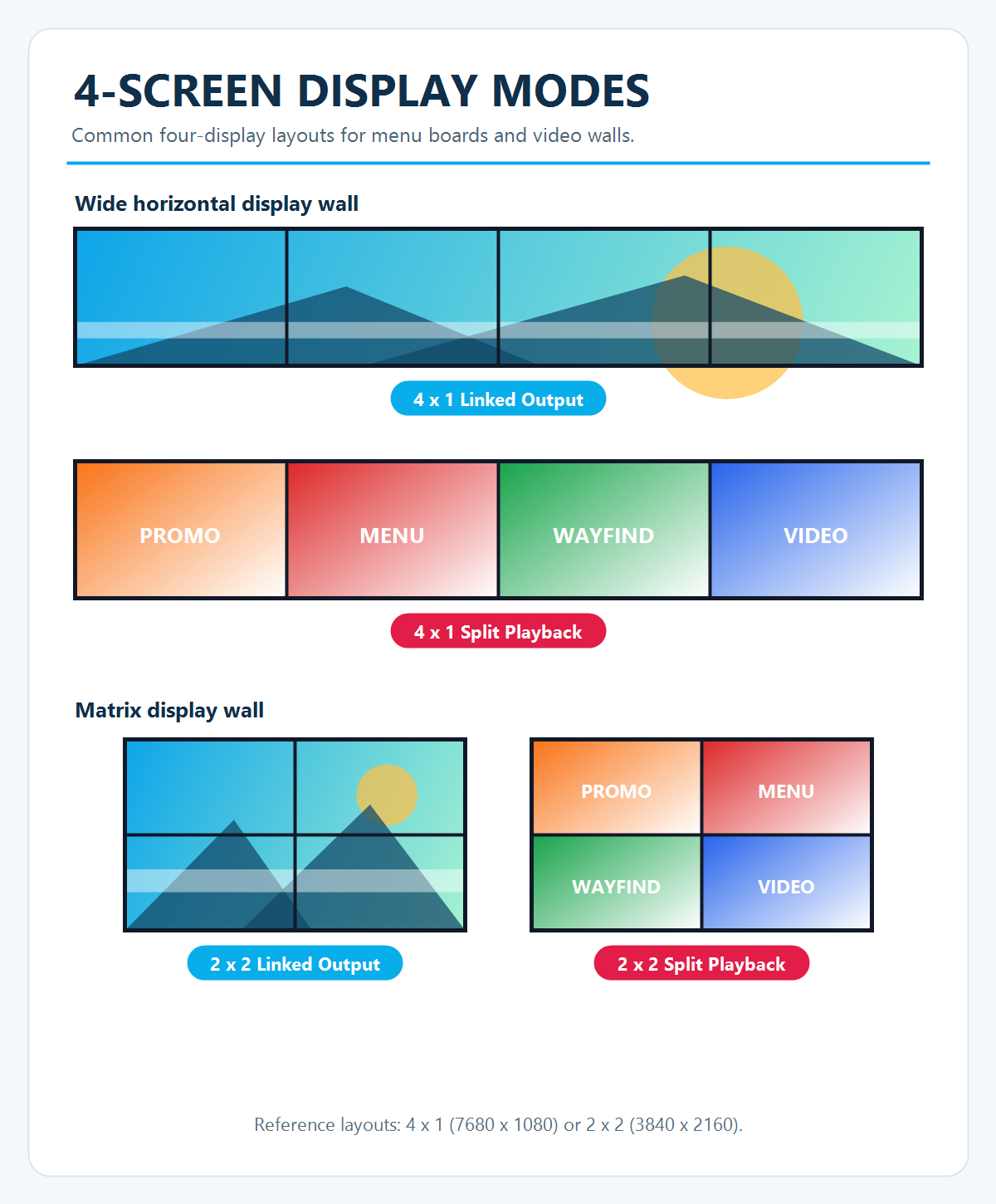

ANN VIEW 8K playback box 4-screen display modes — 4-screen modes: 4 x 1 or 2 x 2 linked output and split playback.

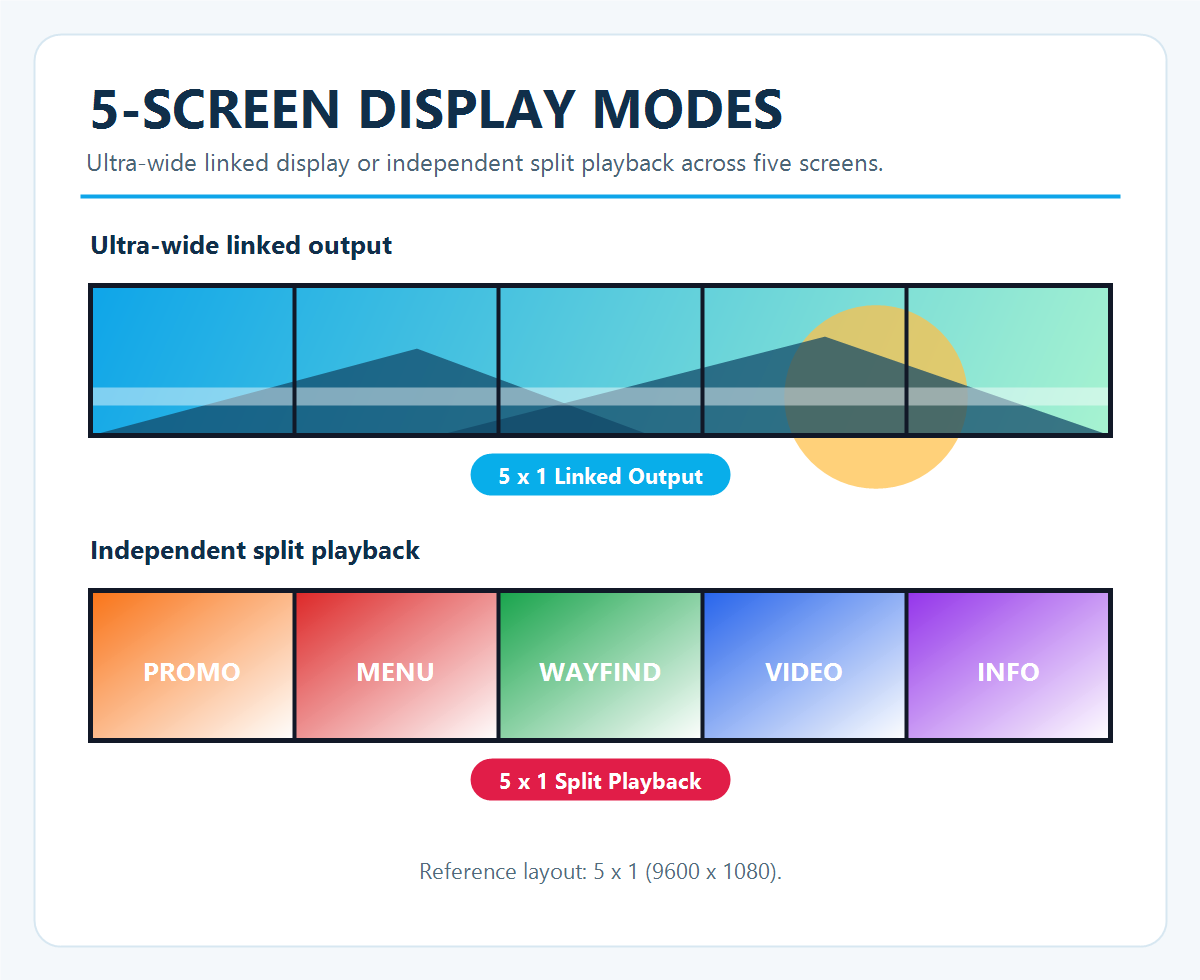

ANN VIEW 8K playback box 5-screen display modes — 5-screen mode: 5 x 1 linked output or split playback.

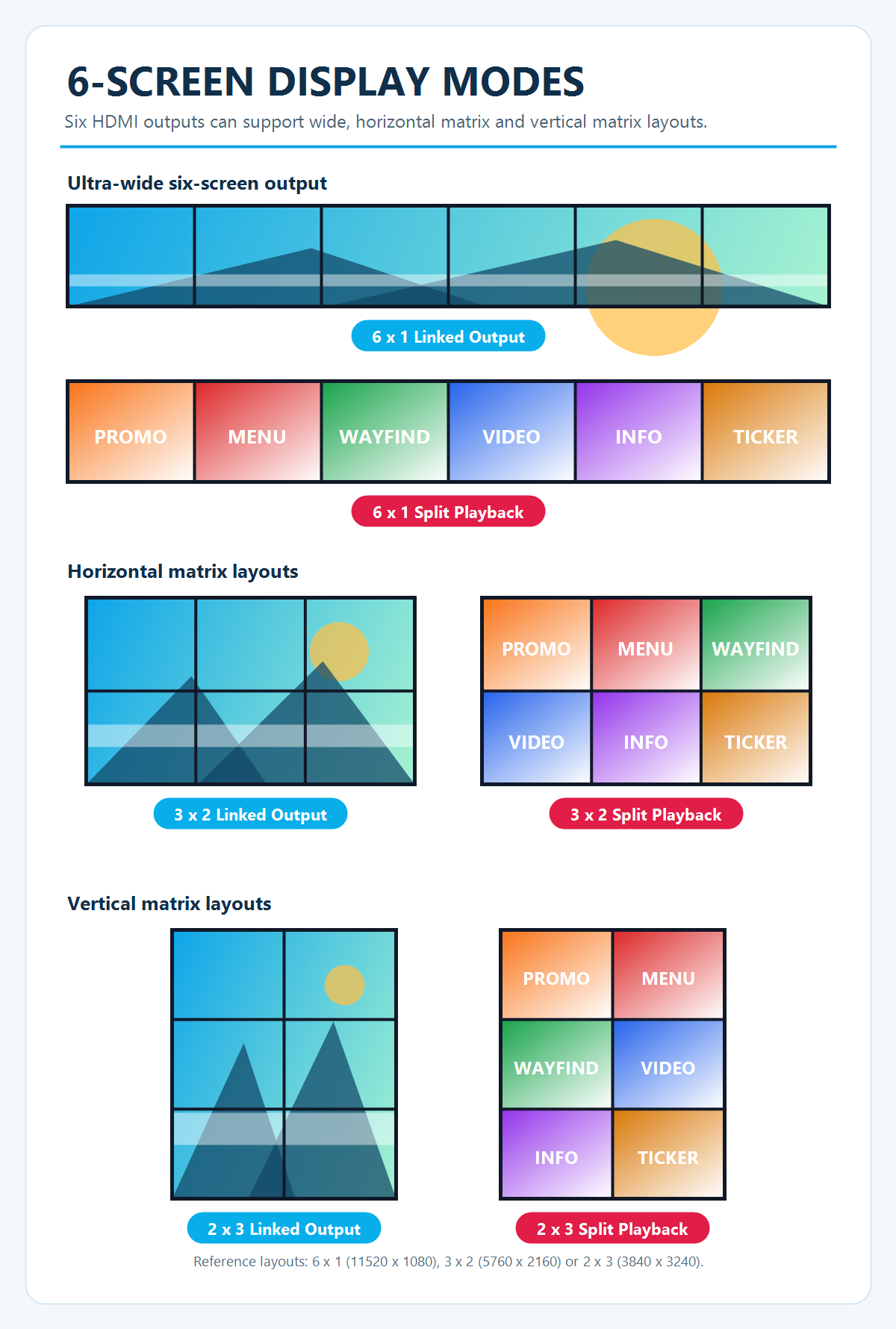

ANN VIEW 8K playback box 6-screen display modes — 6-screen modes: 6 x 1, 3 x 2 or 2 x 3 linked output and split playback.

Before ordering

Please confirm the display resolution, number of screens, HDMI source requirements, network method, CMS workflow and whether the player will be used with LCD signage, LED displays or a mixed display system.
